Qt12-15 Hollow Block Interlocking Automatic Brick Making Machine Price

FOB Reference Price:Get Latest Price
$73,440.00 - $78,440.00 / Sets | 1 Set/Sets Automatic Brick Making Machine Price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brick Raw Material:
Cement
Capacity:
Day
Type:
Paving Block Making Machine
Power:
57.6KW
Certification:
ISO9001/CE
Condition:
New
Processing:
Brick Molding Machine
Method:
Hydraulic Pressure
Automatic:
Yes
Place of Origin:
Fujian, China
Brand Name:
xingxin machine
Model Number:
QT12-15
Voltage:
380V
Dimension(L*W*H):
11500*4550*2800mm
Weight:
15000KG
Products:
Automatic Brick Making Machine Price
Rated pressure:
31.5mpa
Name:
Automatic Brick Making Machine Price
Vibration frequency:
3800-4500r/min
Block Type:
Solid Interlock Block
Product Name:
Automatic Brick Making Machine Price
pallet size:
1350*880mm
Material:
Sand / Flyash / Cement / Stone
Main market:
African Countries
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
150 Set/Sets per Year Automatic Brick Making Machine Price
Packaging & Delivery
Packaging Details
Concrete block making machine:Standard Seaworthy Packing
Port
XIAMEN
Lead Time :
Shipped in 25 days after payment
                                        Main products link
Automatic/HydraulicManual
QT4-15 QT3-20
QT5-15 QT4-25B
QT6-15 QT4-30
QT8-15 QFT2-45B
QT9-15
QT10-15
QT12-15



Qt12-15 Hollow Block Interlocking Automatic Brick Making Machine Price

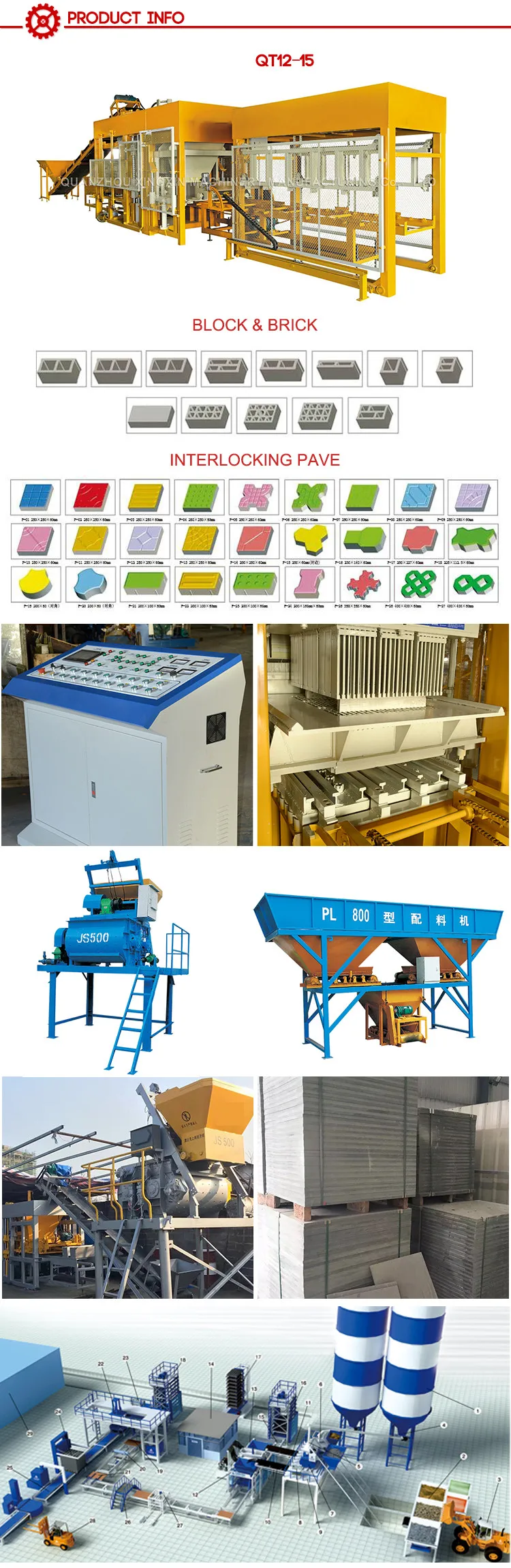

PRODUCT INFO



TECHNICAL PARAMETERS
Vibration Frequency3800-4500r/min
Main machine weigh15000KG
Dimension11500*4550*2800mm
Capacity57.6KW
Cycle Time15-23(S)
Rated pressure31.5mpa
Vibration force150KN
Pallet size1350*880mm





QT Series Multi-functional Fully Automatic Block Making Machine

As a “National Inspection-free Product”, XINGXIN block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading levelof its kind at home.

It is applied in producing high-strength and fine-quality ordinary concrete blocks,fly ash blocks, waste residue blocks, etc.

The blocks produced are featured with high consistency, good capabilities in frost-resistance,

permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.

Technical Features:

A.It reduces the starting current of the motor with a function of soft starting.



B.It realizes the synchronized operation of vibration assembly.



C.Braking unit and braking resistor are used to consume the energy to

solve the problem of inertia of the motor upon braking.



D.The energy saving effect is remarkable. It saves 20-30% of power.



E.High-effective parts of hydraulic proportion system are imported

(more effective and more energy consecutive).



F.Imported intelligent PLC touch screen and authentic electric components

(high automation level and easier operation).



G.Arch-breaking rapid-feeding device (has a great advantage for feeding for porous bricks.

It makes feeding much evener.)



H.Variable-frequency motor and multi-source synchronous vibration system are used.



I.Vibration and forming



J.Special process of high-temperature thermal treatment (the moulds are more durable and rigid)



K.Guiding pole.It is made of ultra high strength steel and the surface is coated with hard chrome

for a better torsional and abrasive performance.



HOT SALE



                                Full Automatic Block Making Machine

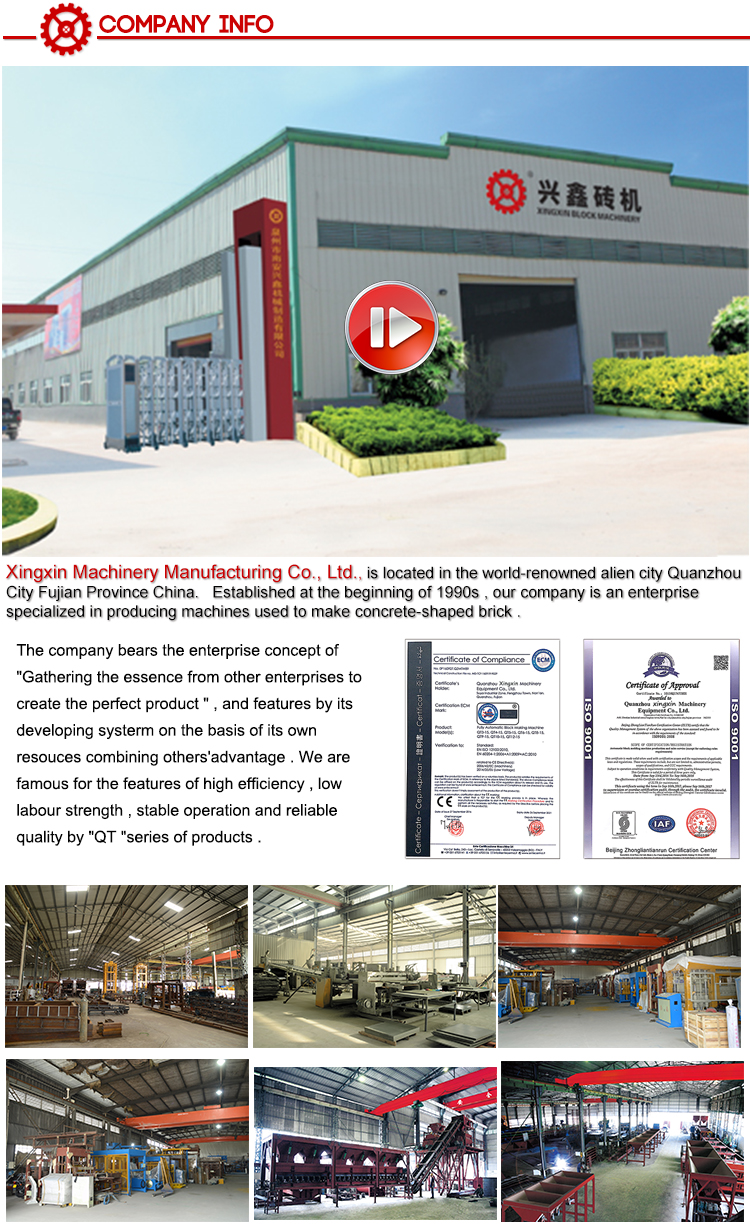

COMPANY INFO



SERVICE CASE





EXHIBITION





PACKING & PAYMENT



Payment Terms:

30% as down payment by T/T. the remaining 70% shall pay off beforeall items being delivered

Delivery Way: FOB Xiamen
Delivery Time: 40 days after receiving your 30% down payment.
Warranty:Within one year from delivery.



FAQ



                                                    FAQ

Q1: What kind of products we can supply ?

       A:wall panel making plant,

              block making machinery

              concrete mixing plant

              hydrostatic press machinery

Q2:Terms of  Payment?

      A: Payment:30% by T/T as deposit; remainder 70% to be paid three days before shipment.

           Delivery Way: FOB Xiamen

           Delivery Time: 35-40 days after receiving your 30% down payment.
          Warranty: within one year from delivery

Q3:What transport packaging?

     A: Automatic concrete brick making machine according to actually needs packaging,
         according to customer needs packaging.
