QT8-15 color paver brick paving stone block making machine factory price

  • 1 - 1 Sets
    $80,000.00
  • >=2 Sets
    $75,000.00
Model Number:
QT8-15 color paver brick paving stone block making machine
Power:
44.9kw
Customization:
Graphic customization (Min. Order: 1 Sets)
Samples:
$80,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Algeria
Showroom Location:
Algeria
Condition:
New
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
CONCRETE
Processing:
Brick Cutting Machine
Method:
Hydraulic pressure
Automatic:
Yes
Max. Capacity:
12000pcs/shift
Place of Origin:
Fujian, China
Brand Name:
Xingxin
Voltage:
220V/380V
Dimension(L*W*H):
9800X3600X2800mm
Certification:
ISO9001/CE
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High Safety Level
Brick size:
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 240*115*90 mm, 400*200*200 mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
PLC, Engine
Raw material:
Crushed Stone, sand, cement
Weight:
12000kg
Pallet size:
980x860x22mm
Molding cycle:
15-23s
Model:
QT8-15
Main market:
Asia, Africa, Middle East
Vibration frequency:
3800-4500r/min
Advantage:
20 years manufacturing experience
Application:
for building house
Product Certification certification
CE Certified.
Valid from 2015-09-01 until 2049-12-31
Supply Ability
Supply Ability:
150 Set/Sets per Year automatic concrete block making machine
Packaging & Delivery
Packaging Details
Standard Seaworthy Packing
Port
xiamen
Product Description
Specification

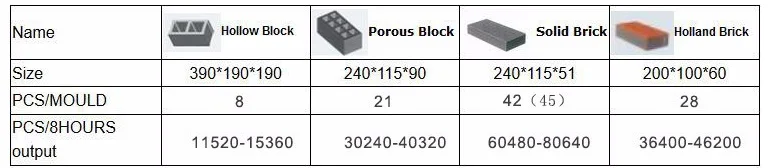

Main Technical Specifications
Production per Mould:
48 pcs/mould (Solid Block: 240x115x51mm)
8pcs/mould(Hollow block: 390x190x190mm)
21 pcs/mould (Porous block: 240x115x90mm)
28 pcs/mould (Holland Brick: 200x100x60-80mm)
Cycle Time:
15-23 seconds
Production per Shift (8 Working Hours):
Hollow Block (390x190x190mm): 14400-19200 pcs
Solid Block (240x115x51mm): 73440-97920 pcs
Porous block (240x115x90mm): 34560-46080 pcs
Holland Brick (200x100x60mm): 46800-59400pcs
Vibrating Frequency:
3800-4500 rolls/minute or 50 HZ
Vibrating Force:
95 KN
Motors Power:
44.9 KW
Machine Dimensions:
9800x3600x2800mm (excluding electrical control box)
Pallet Size:
1100x880x25mm
Gross Weight:
about 14T
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products:
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,
slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc

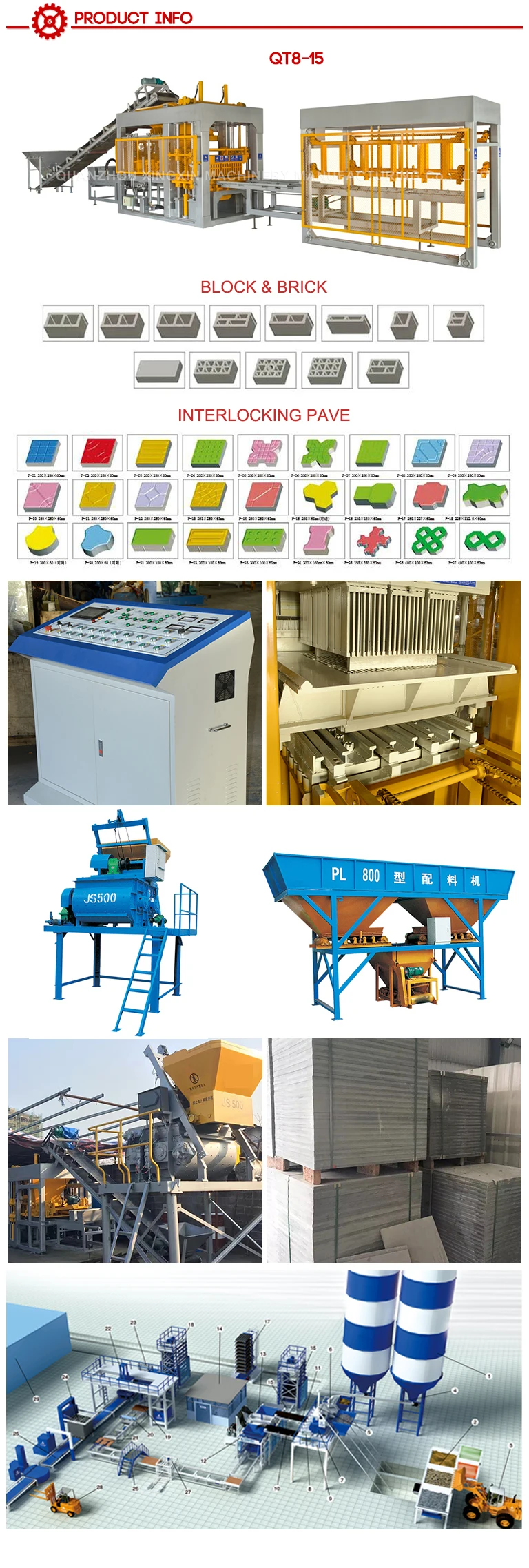

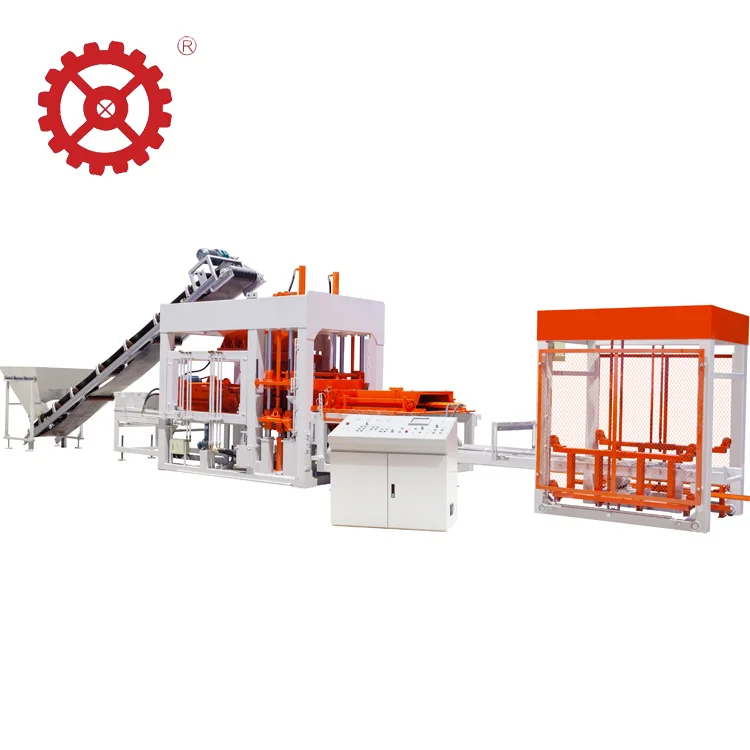

QT Series Multi-functional Fully Automatic Block Making Machine

As a 'National Inspection-free Product',Xingxin block making machine is well supported with complete functions, easy operation and stable quality.It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.

Technical charcteristic:

A,Imported high-dffect haydraulic proportion system pure component (more efficient and energy conservation)
B,Imported intelligence PLC touch screen and pure electrical element (high automaticty and easy to operate)
C,Arch breaking type repid feeding device(better feeding for muti-hole brick with better uniformity)
D,Extend type high efficient vibrotechnique(Forming production faster and with higher compactedness)
E,High-heat treatment special technoligy(to make the mould more durable and more firm)

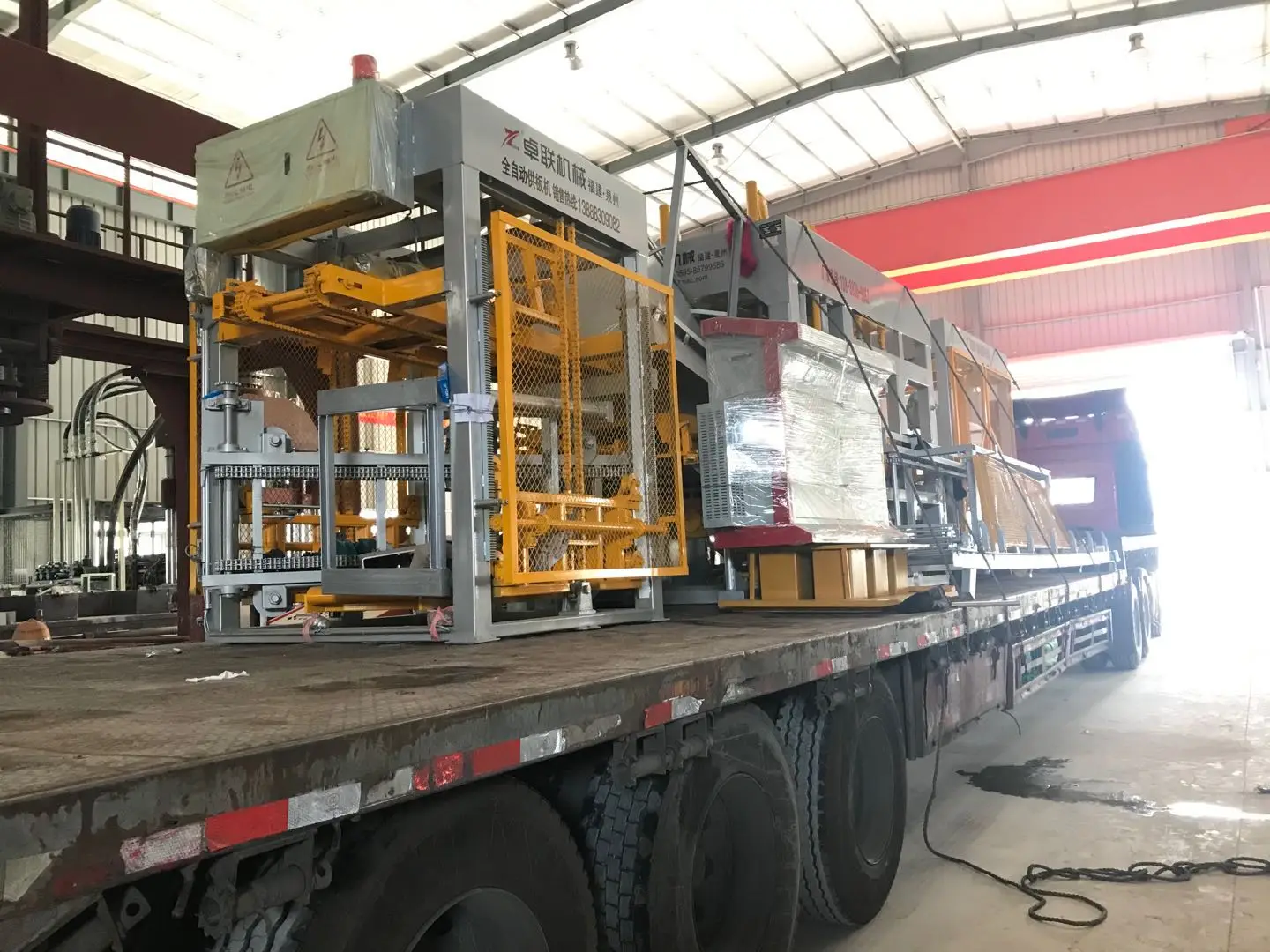

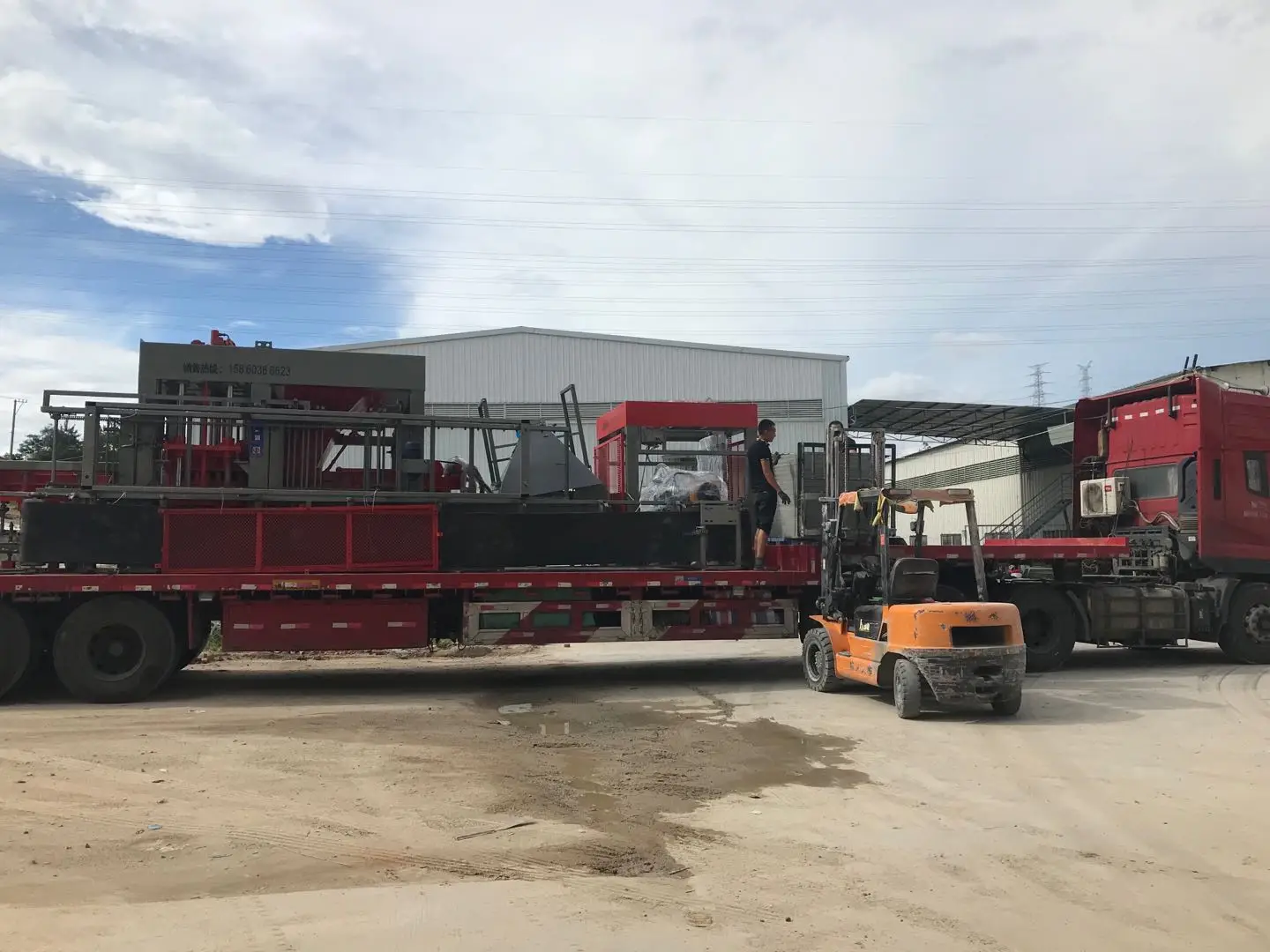

Packing & Delivery

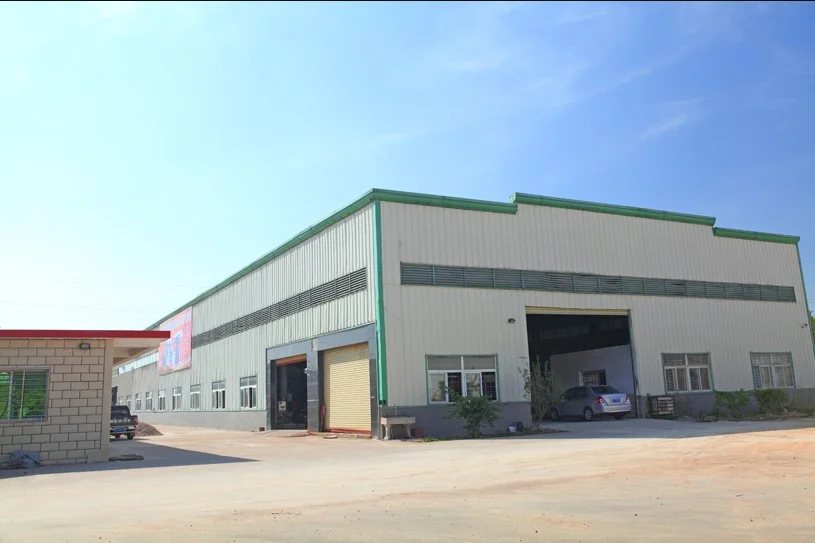

Company Profile
QuanZhou Xingxin Machinery Manufacturing Co., Ltd.is located in Quanzhou City Fujian Province China.
Established at the beginning of 1990s , our company specializing in the production of machines used to make concrete-shaped brick.The company bears the enterprise concept of "Gathering the essence from other enterprises to create the perfect product" company philosophy , and features by its developing world system the basic of its own resouces combining others advantage. We are famous for the features of high efficiency, low labour strength,stable operation and reliable quality by "QT"series of products.We can
product various sizes of the mould according to the demands of the customers,and offer a series of services including sale,intallation,uninstallation and after-sale service and so on.
FAQ
Q1: What kind of products we can supply ?
A:wall panel making plant, block making machinery, concrete mixing plant, hydraulic static press machinery.
Q2:Terms of Payment?
A: Payment:30% by T/T as deposit; remainder 70% to be paid three days before shipment.
Delivery Way: FOB Xiamen
Delivery Time: 35-40 days after receiving your 30% down payment.
Warranty: within one year from delivery
Q3:What transport packaging?
A: Automatic concrete brick making machine according to actually needs packaging, according to customer needs packaging.
