QT10-15 fully automatic brick maker fly ash hollow block machine price in bangladesh

  • 1 - 1 Sets
    $110,000.00
  • >=2 Sets
    $105,000.00
Model Number:
QT10-15 fully automatic brick maker
Power:
48.9kw
Customization:
Graphic customization (Min. Order: 1 Sets)
Samples:
$110,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Cement
Processing:
Brick Cutting Machine
Method:
Hydraulic pressure
Automatic:
Yes
Max. Capacity:
15000 pcs/shift
Place of Origin:
Fujian, China
Brand Name:
xingxin machine
Voltage:
380V
Dimension(L*W*H):
11500x4050x2800(mm)
Certification:
ISO9001/CE
Warranty:
1 YEAR, One Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High Safety Level
Brick size:
240*115*90 mm, 400*200*200 mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 YEAR
Core Components:
PLC, Engine
Raw material:
cement
Weight:
15T
Vibration frequency:
3800-4500r/min
Model:
QT10-15
Product Name:
cement block making machine
Molding cycle:
15-23s
Main market:
African Countries
Function:
multi-functional
Product Certification certification
CE Certified.
Valid from 2015-09-01 until 2049-12-31
Supply Ability
Supply Ability:
150 Set/Sets per Year cement block making machine
Packaging & Delivery
Packaging Details
Standard Seaworthy Packing
Port
XIAMEN
Video Description
Product Description
Specification
Main Technical Specifications

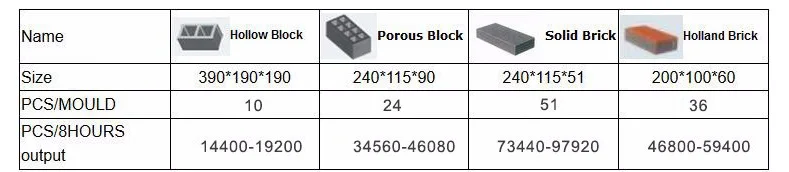

Production per Mould:
51 pcs/mould (Solid Block: 240x115x51mm)
10pcs/mould(Hollow block: 390x190x190mm)
24 pcs/mould (Porous block: 240x115x90mm)
36 pcs/mould (Holland Brick: 200x100x60-80mm)
Cycle Time:
15-23 seconds
Production per Shift (8 Working Hours):
Hollow Block (390x190x190mm): 14400-19200 pcs
Solid Block (240x115x51mm): 73440-97920 pcs
Porous block (240x115x90mm): 34560-46080 pcs
Holland Brick (200x100x60mm): 46800-59400pcs
Vibrating Frequency:
3800-4500 rolls/minute or 50 HZ
Vibrating Force:
105 KN
Motors Power:
48.9 KW
Machine Dimensions:
11500x4050x2800mm (excluding electrical control box)
Pallet Size:
1100x880x25mm
Gross Weight:
about 16T
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products:
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,
slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc

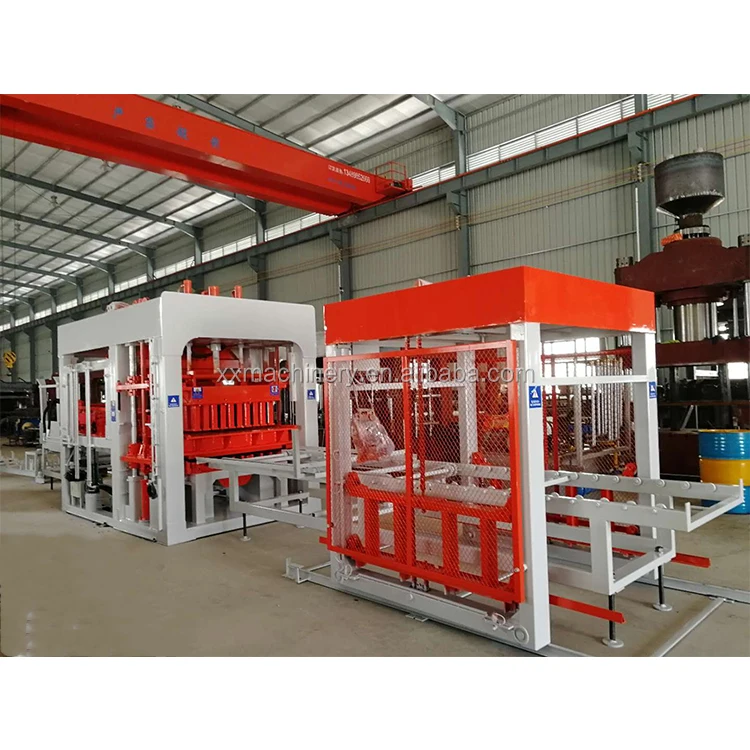

QT Series Multi-functional Fully Automatic Block Making Machine

As a “National Inspection-free Product”, XINGXIN block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading levelof its kind at home.
It is applied in producing high-strength and fine-quality ordinary concrete blocks,fly ash blocks, waste residue blocks, etc.
The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.

Technical Features:

A.It reduces the starting current of the motor with a function of soft starting.
B.It realizes the synchronized operation of vibration assembly.
C.Braking unit and braking resistor are used to consume the energy to solve the problem of inertia of the motor upon braking.
D.The energy saving effect is remarkable. It saves 20-30% of power.
E.High-effective parts of hydraulic proportion system are imported (more effective and more energy consecutive).
F.Imported intelligent PLC touch screen and authentic electric components (high automation level and easier operation).
G.Arch-breaking rapid-feeding device (has a great advantage for feeding for porous bricks. It makes feeding much evener.)
H.Variable-frequency motor and multi-source synchronous vibration system are used.
I.Vibration and forming
J.Special process of high-temperature thermal treatment (the moulds are more durable and rigid)
K.Guiding pole.It is made of ultra high strength steel and the surface is coated with hard chrome
for a better torsional and abrasive performance.
